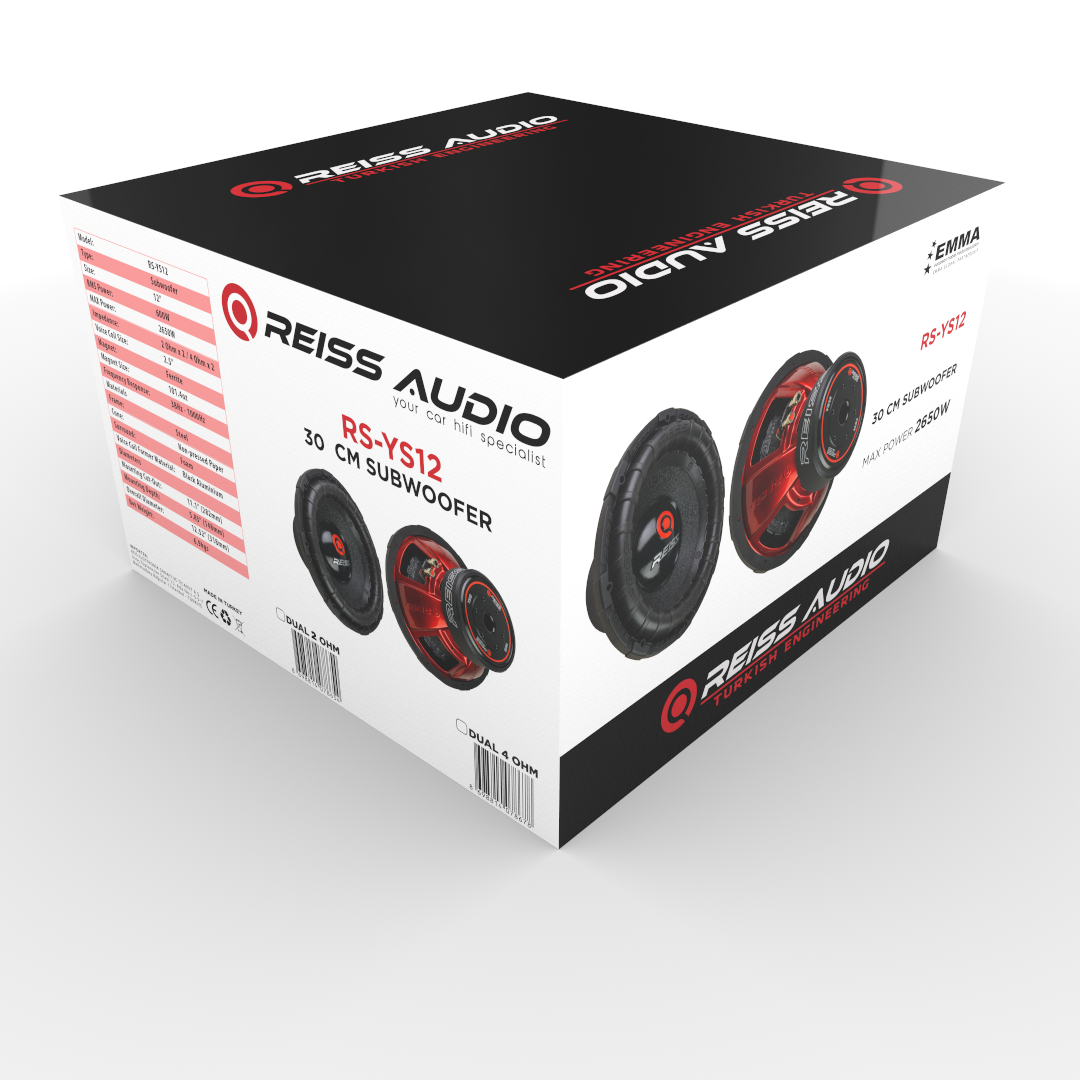

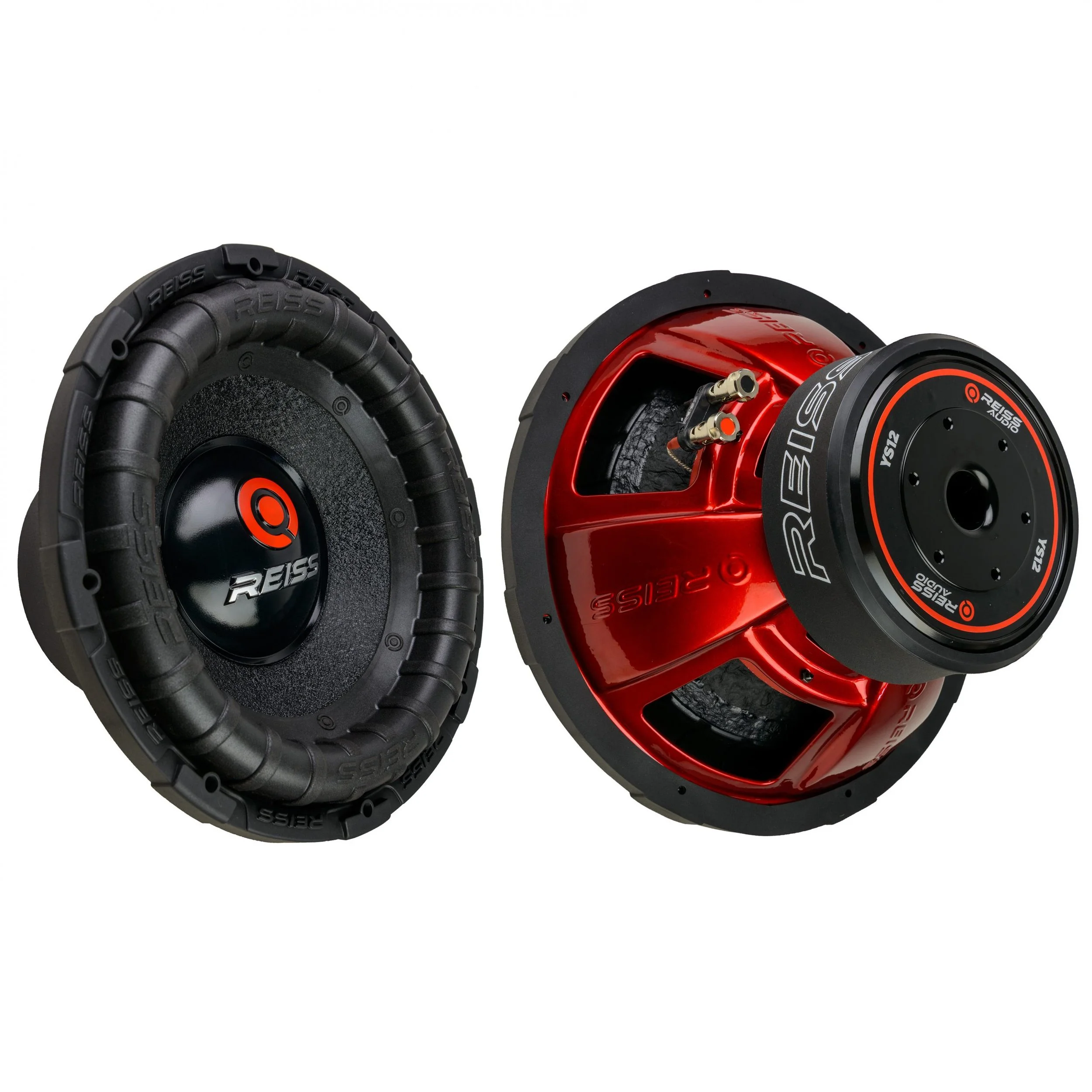

Reiss RS-YS12

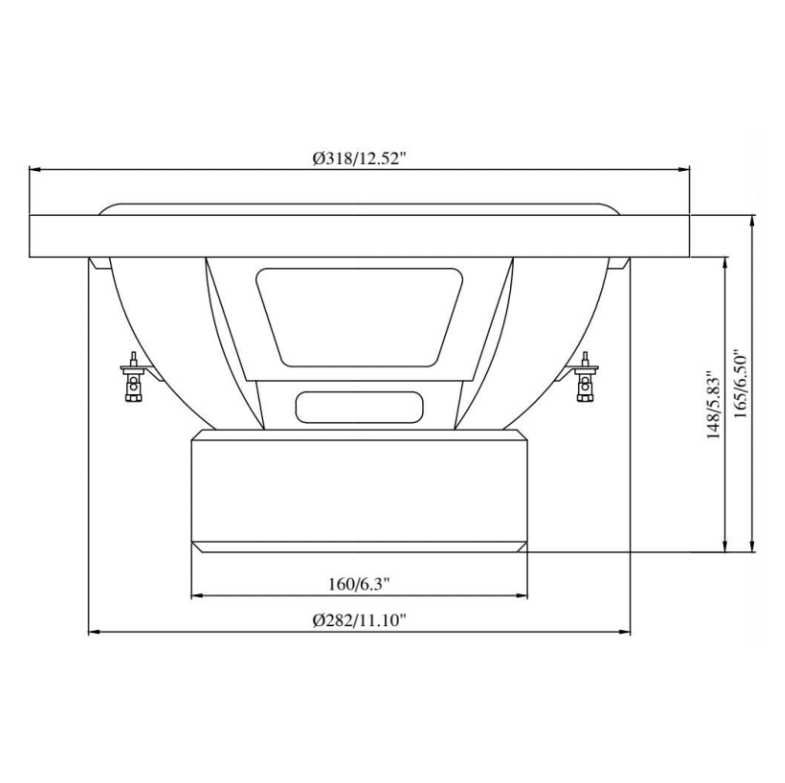

Overall Dimensions: Ø318 × 165 mm
Basket Material: Steel

Nominal Power Handling: 600 W
Maximum Power: 2000 W
Cone Material: Non-Pressed Paper
Surround: High Density Foam
Dust Cap: Polyethylene
Voice Coil: High Temperature Black Aluminum
Magnet Structure: Ferrite

Sensitivity: 88 dB
Frequency Response: 38 ~ 1000 Hz

Net Weight: 6.9 kg

Electrical Data:

• Nominal Impedance: 2 × 2 Ω / 2 × 4 Ω

• DC Resistance: 2 × 1.8 Ω / 2 × 3.2 Ω

Voice Coil & Magnet Parameters:

• Voice Coil Diameter: 63.8 mm

• Voice Coil Height: 35 mm

• Magnetic Gap Height: 8 mm

• Voice Coil Material: AL (Aluminum)

• Number of Layers: 4L

T-S Parameters:

• Suspension Compliance (Cms): 82.678 µM/N / 92.787 µM/N

• Mechanical Q Factor (Qms): 6.533 / 5.606

• Electrical Q Factor (Qes): 0.692 / 0.736

• Total Q Factor (Qts): 0.626 / 0.652

• Moving Mass (Mms): 230.102 g / 176.949 g

• Equivalent Air Volume (Vas): 25.225 L / 28.310 L

• Resonant Frequency (Fs): 36.489 Hz / 39.278 Hz

• Effective Piston Area (Sd): 46.353 cm²
